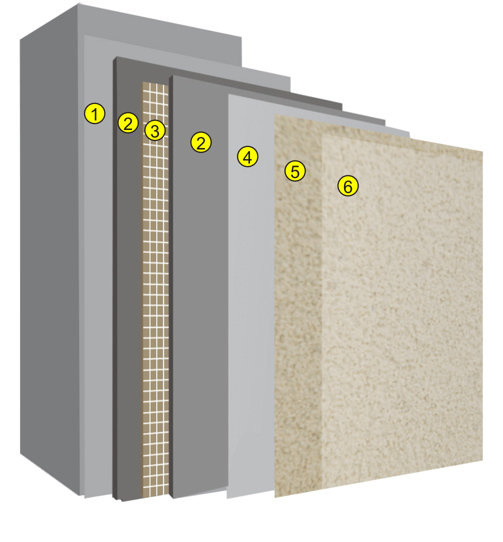

Structure Diagram
1. Interfacer (in such as tiles, profiles, aluminium composite panels, aluminium moulded walls, etc.)
2. Exterior wall putty
3. Mesh cloth (applied to the wall with cracking potential, or the repair of the base layer that has been cracked)
4. Primer(Transparent type, solid colour type)
5. Stone paint
6. Face coating (high weathering type, hydrophobic type)
Product Features

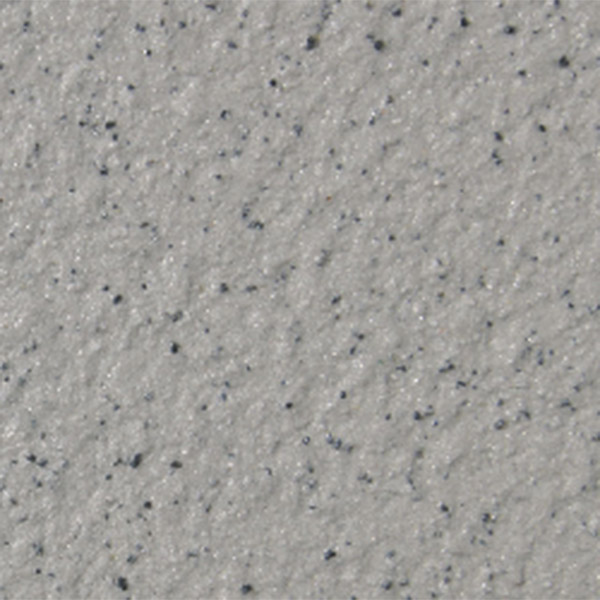

Sense of stone material: Made of natural gravel or pure colored sand, the stone has a concave and convex texture.
Water repellent and breathable: Good water repellent performance, not easy to turn white and flower.The bonding strength is high and the breathability is good.
Dynamic cracking resistance: Resistant to moisture, cold and heat circulation and temperature difference changes, high bonding strength, good dynamic cracking resistance, and can cover the cracks in the plastering putty layer.
Weather resistance and durability: Good weather resistance and long durability.
Good construction: The sand diameter ratio is reasonable and the waste rate is low.The construction is simple, safe and convenient, and is not limited by the wall structure and building height.
Stable quality: Easy to apply and has a high price/performance ratio., Product quality is stable and reliable.
Construction System
| System | Coating Product | Coating Process | Coats | Theoretical Consumption (kg/m) |
| Leveling | Exterior Wall Putty | Trowel Coating | 1-2 | 2. 0-3. 0 |
| Primer | Water-based Sealing Primer | Roller Coating | 1 | 0. 15-0. 2 |
| Finish | Natural Stone Paint | Spraying | 2 | 3. 5-4. 0 |
| Topcoat | Water-based Gloss Finish | Roller Coating | 1 | 0. 15-0. 2 |
Construction Steps
Leveling the base layer: The putty is prepared in accordance with the prescribed proportion and stirred evenly for use, no powder is required
Clumps, no pimples, no excessive particles and moderate viscosity.Fill the prepared coarse putty with a batch knife 1-2 times, rub it flat with a scraper before the surface dries, and wait for it to be straight.After the coarse putty is completely dried, the fine putty will be filled once, and the surface will be polished and smoothed moderately after drying.
Alkali-resistant primer: The primer can be used directly after stirring evenly. If it needs to be diluted with water, it should be added in a fixed proportion by a special person according to the actual situation of the site. Excessive dilution is prohibited: The prepared primer is applied again with a wool roller, and a wool brush is applied to the corners and crevices to assist in the construction, which requires consistent gloss and no leakage.
Texture topcoat: The stone paint can be used directly after stirring evenly. If you need to adjust the viscosity, you can add water moderately and stir well. Note that the dilution ratio should not exceed 2% of the amount of paint; Spray the prepared stone paint twice with a spray gun, and the re-coating interval is ≥4h, which requires full spraying, consistent texture, no transparent bottom, hair flowers, etc.
Anti-fouling cover surface: The water-based cover glossy oil can be used directly after stirring evenly, if you need to add water to dilute
Release, it should be added in a fixed proportion by a special person according to the actual situation of the construction site, and excessive dilution is prohibited; the prepared varnish should be applied again with a wool roller, and a wool brush should be applied to the corners and crevices to assist in the construction, which requires uniform thickness and no leakage. Coating.
